Product Details
Place of Origin: JiangSu China
Brand Name: Slingman
Certification: CE GS TUV ISO
Model Number: TSUWB04-5
Payment & Shipping Terms
Minimum Order Quantity: 100
Price: Negotiate
Packaging Details: Film shrinked with outer carton
Delivery Time: 35 days since order confirmed
Payment Terms: TT DP
Supply Ability: 20000 Per month
Color: |
Yellow |
Material: |
Polyester |
Standard:: |
ASMEB30.9 |
Brand: |
Slingman |
Type: |
Web Sling |
Certification: |
CE GS TUV ISO |
Label: |
Orange |
Place Of Origin: |
JiangSu China |
Shape: |
Flat |
Pattern: |
Flat Woven Pattern Webbing |
Lifting Eye Type: |
Flat Eyes |
Safety Factor: |
5 To 1 |
Color: |
Yellow |
Material: |
Polyester |
Standard:: |
ASMEB30.9 |
Brand: |
Slingman |
Type: |
Web Sling |
Certification: |
CE GS TUV ISO |
Label: |
Orange |
Place Of Origin: |
JiangSu China |
Shape: |
Flat |
Pattern: |
Flat Woven Pattern Webbing |
Lifting Eye Type: |
Flat Eyes |
Safety Factor: |
5 To 1 |

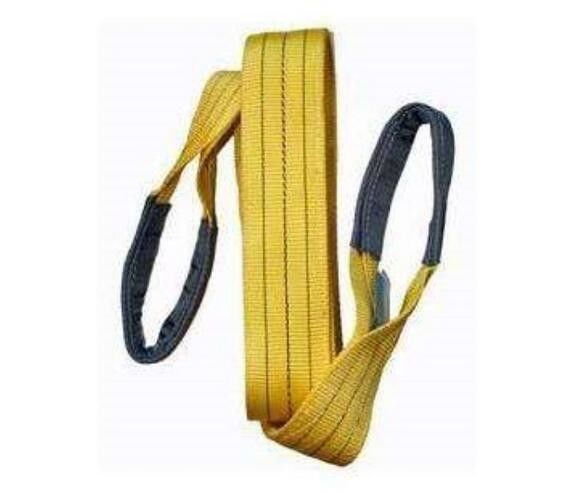

US Eye to Eye Flat Woven Webbing Sling
All our lifting slings and lifting straps are made of highly durable, heavy-duty polyester webbing. These lifting slings (sometimes called lifting straps) are in stock in numerous widths and lengths. Slings come in various styles: flat eye and eye, twisted eye, endless, and endless round to meet your specific application.
WLL 11500 LBS
Width 4 Inch
Length As client request
Colour Yellow
Standard ASMEB30.9
Certification CE GS TUV ISO
Safety Factor 5 to 1 Class 7, we can produce class 5 as well.
Package Film shrinked with outer carton and Pallet 20 Pallets per 20 feet container
1 100% high tenacity polyester fiber. Double A Class raw material fiber
2 Double Plies slings. Of course , we can make one ply, three plies and four plies as well.
3 With reinforcement on lifting eyes.
4 100% polyester sewing thread
Flat Eye & Eye Lifting Slings
Flat Eye & Eye (EE) lifting slings are made with a flat loop eye on each end. The slings have a loop eye opening on the same plane as the sling body.
This type of sling goes by a variety of names including flat eye and eye, eye and eye and double eye sling.
The flat eye and eye slings are versatile and flexible. They can be used with all three hitches: vertical, basket and choker.
Product Detail
1. Sling can be fabricated from single or multiple plies, may include accessories such as edge guard,wear pads or sleeves, and are available in several configurations.
2. Loading surface is wide to reduce the weight at each loading point, no damage to tender objects.
3. Anti-abrasion and anti-incision protection sleeve can be attached.
4. Has special label working loads is differentiated by colors according to international standard easy to identify even if the sling has abased.
5. Light and soft, can bu used in small narrow space.
6. In PU processing anti-danger of electric stroke.
7. The working temperature range-40℃-100℃.
Features
Single Use - One Way
Low cost, simple design
Easy to use
Stronger and more compact than rope or wire rope alternative solutions.
Can be attached or built in to a structure or load, but must only be used to perform a single complete lift.
Saves time and cost on-site slinging and reslinging loads.
Fully manufactured, labelled and tested in accordance with BS EN 1492-1:2000 or upon request, manufactured to your commercial specifications with supporting technical file.
Available as standard in 25mm, 35mm and 50mm widths in endless format or as bespoke units with loops each end.
Product feature
WARNING
Inspect slings each day before use, looking for:
Missing or unreadable ID tag
Melted, charred or weld-splattered areas
Acid or alkali burns
Holes, tears, cuts, snags or embedded particles
Broken or worn stitching
Excessive abrasive wear or elongation
Knots or brittle areas
Broken, corroded, pitted distorted fittings
Do not use worn or damaged slings or attachments. Discard or repair them. Use damaged slings only after they are repaired, reconditioned, and proof tested by the sling manufacturer or a qualified person. Keep certificates of proof test.
Maintenance requirements are minimal. Belt slings may be cleaned with clear water. Remember weak chemical
solutions will become increasingly stronger by evaporation. Regularly inspect belt slings and, in the event of the
following defects, refer the sling to a Competent Person for thorough examination: illegible markings; damaged,
chaffed or cut webbing; damaged or loose stitching; heat damage; burns; chemical damage; solar degradation;
damaged or deformed end fittings.
WARNING
Do not use strap if there are any signs of cut webbing, heat or chemical damage.
Do not attempt to use strap above rated capacity.
Alternate hardware available
Webbing straps must be protected when used on rough or sharp objects. Straps that are cut, worn or otherwise damaged should not be used.
A strap is only as strong as its weakest component.
