4 Inch Eye And Eye Sling Polyester Material 11500 LBS Crane Slings Rigging

4 Inch Eye And Eye Sling Polyester Material 11500 LBS Crane Slings Rigging

WLL      11500 LBS

Width    4 Inch

Length   As client request

Colour   Yellow

Standard   ASMEB30.9

Certification    CE GS TUV ISO
Safety Factor  5 to 1   Class 7, we can produce class 5 as well.

Package    Film shrinked with outer carton and Pallet      20 Pallets per 20 feet container

1  100% high tenacity polyester fiber.  Double A Class raw material fiber

2  Double Plies slings. Of course , we can make one ply, three plies and four plies as well.

3  With reinforcement on lifting eyes.

4  100% polyester sewing thread

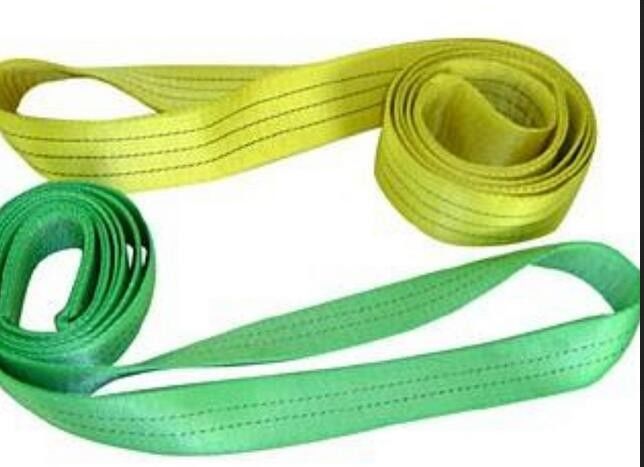

Flat Eye & Eye Lifting Slings

Flat Eye & Eye (EE) lifting slings are made with a flat loop eye on each end. The slings have a loop eye opening on the same plane as the sling body.

This type of sling goes by a variety of names including flat eye and eye, eye and eye and double eye sling.

The flat eye and eye slings are versatile and flexible. They can be used with all three hitches: vertical, basket and choker.

Features

Single Use - One Way

Low cost, simple design

Easy to use

Stronger and more compact than rope or wire rope alternative solutions.

Can be attached or built in to a structure or load, but must only be used to perform a single complete lift.

Saves time and cost on-site slinging and reslinging loads.

Fully manufactured, labelled and tested in accordance with BS EN 1492-1:2000 or upon request, manufactured to your commercial specifications with supporting technical file.

Available as standard in 25mm, 35mm and 50mm widths in endless format or as bespoke units with loops each end.

WARNING

Inspect slings each day before use, looking for:

Missing or unreadable ID tag
Melted, charred or weld-splattered areas
Acid or alkali burns
Holes, tears, cuts, snags or embedded particles
Broken or worn stitching
Excessive abrasive wear or elongation
Knots or brittle areas
Broken, corroded, pitted distorted fittings

Do not use worn or damaged slings or attachments. Discard or repair them. Use damaged slings only after they are repaired, reconditioned, and proof tested by the sling manufacturer or a qualified person. Keep certificates of proof test.

Maintenance requirements are minimal. Belt slings may be cleaned with clear water. Remember weak chemical

solutions will become increasingly stronger by evaporation. Regularly inspect belt slings and, in the event of the

following defects, refer the sling to a Competent Person for thorough examination: illegible markings; damaged,

chaffed or cut webbing; damaged or loose stitching; heat damage; burns; chemical damage; solar degradation;

damaged or deformed end fittings.

Our Services

1. Client

We treasure and try to understand all the different needs of our clients and seek to forge a long term professional relationship with them. The satisfaction of each and every customer is our main goal and motivation in conducting our business.

2. People

We work as a team and treat each other with respect. Our solid, capable and knowledgeable team is valued as the greatest asset and an integral part of the business.

3. Product

Our products are of HIGH quality standards and always come with certificate of compliance by the manufacturers.

4. Free sample and OEM service

We can provide free samples to you and we also have OEM service, we can put your logo on the label and the information you need on the webbing too.
