Custom Length Flat Eye Sling / Flat Woven Pattern Safety Slings For Lifting

Product Details

Place of Origin: JiangSu China

Brand Name: Slingman

Certification: CE GS TUV ISO

Model Number: TSWB04-7

Payment & Shipping Terms

Minimum Order Quantity: 1000 pc

Price: Negotiate

Packaging Details: Film shrinked with outer carton

Delivery Time: 30-40 work days

Payment Terms: T/T, D/P

Supply Ability: 20000 Per month

Get Best Price
Highlight:

webbing lifting slings

,

flat web lifting slings

Sour:
China
Material:
Polyester
Color:
Grey
Standard::
EN1492-1 2000
Safety Factor:
6 To 1, And We Can Make 5 To 1, 7 To 1 And 8 To 1 As Well.
Certification:
CE GS ISO TUV
Label:
Blue
Sour:
China
Material:
Polyester
Color:
Grey
Standard::
EN1492-1 2000
Safety Factor:
6 To 1, And We Can Make 5 To 1, 7 To 1 And 8 To 1 As Well.
Certification:
CE GS ISO TUV
Label:
Blue
Custom Length Flat Eye Sling / Flat Woven Pattern Safety Slings For Lifting

Custom Length Flat Eye Sling / Flat Woven Pattern Safety Slings For Lifting

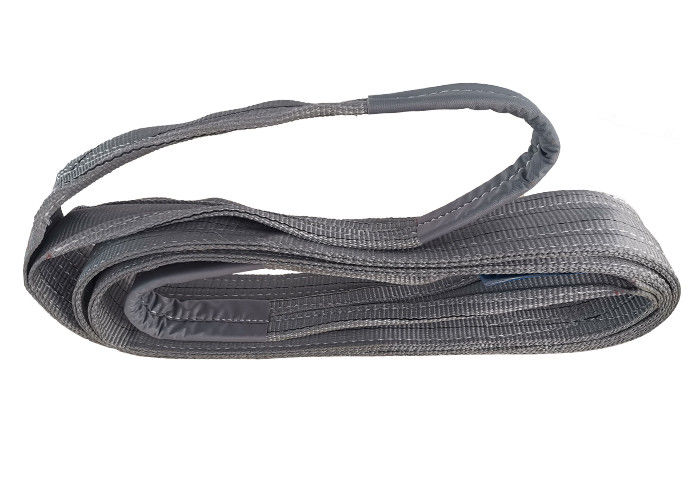

China made type 3 heavy duty polyester flat eye and eye sling. Eye and Eye (EE) slings are made with a flat loop eye on each end with a loop eye opening on the same plane as the sling body. This type of sling is sometimes called: flat eye & eye; eye & eye or double eye sling. Versatile and flexible, this sling can be used in all three hitches (vertical, basket and choker). This sling is 2 ply and rated for 4000KG vertical load, 3200KG choker hold, and 8000KG basket hold. Polyester slings are known for their flexibility, weight, strength, and non-marring properties. Comes with the Original Guaranteed ID tag which means: Inspection sheet w/ care, use and maintenance information. Serial numbers for inspection criteria and trace ability. Easy to Read–Oversize letters & numbers High Quality China made materials, dyed safety blue w/ specialty formulated Thermal printing.



Technical Details:

  • WLL:4T
  • Width:100mm
  • Length:As client request
  • Colour:Grey
  • Standard:EN1492-1 2000
  • Certification:CE GS TUV ISO
  • Safety Factor: 6to 1, and we can make 5 to 1, 7 to 1 and 8 to 1 as well.
  • Package:Film shrinked with outer carton and Pallet 20 Pallets per 20 feet container




Product HIGHLIGHTS:

  1.  100% high tenacity polyester fiber. Double A Class raw material fiber.
  2.  Double Plies slings. Of course , we can make one ply, three plies and four plies as well.
  3. With reinforcement on lifting eyes.
  4.  100% polyester sewing thread.
  5. Excellent resistance to ultra-violet rays, rot and mildew.
  6. Lightweight, easy to handle, store and clean.
  7. No loss of strength when used in water
  8. Only 3% elongation.
  9. Protects worker’s hands.
  10. These slings adapt to all types, sizes, and load configurations while remaining lightweight and easy to rig, clean, and store. They offer excellent resistance to UV light, rot, and mildew. They also do not lose any strength in water and reach only 3% elongation.
  11. This product can be exposed to high heat up to a maximum of 180°. Additionally, the absence of any metal parts in this product eliminates rust concerns and reduces the need for wear pads.
  12. Colour guidelines for polyester round sling covers are widely used to indicate the vertical rated load of round slings: however this is not followed by some manufacturers. Always select and use round slings by the rated load as shown on the sling identification tag.


 Use and Inspection:


Before each use, all slings, fastenings and attachments should be inspected for defects and damage. Additional inspections should be performed on a regular basis. Damaged or defective slings should be removed and destroyed immediately.
A sling should be removed from service if damage such as the following is visible:
Acid or caustic burns.
Melting or charring of any part of the sling.
Holes, tears, cuts or snags.
Excessive abrasive wear.
Knots in any part of the sling.
Excessive pitting, corrosion, cracking or distortion in end fittings
Other visible damage that causes doubt as to the strength of the sling.


Custom Length Flat Eye Sling / Flat Woven Pattern Safety Slings For Lifting 0

1.  Q:What is your advantages in all these manufacturers?

A:We treasure and try to understand all the different needs of our clients and seek to forge a long term professional relationship with them. The satisfaction of each and every customer is our main goal and motivation in conducting our business.

2.  Q:What is lead time for the products?

A:According to the quantity and products you order, normally 7~35days, and we choose the best forwarder to supply service for both of us.

3.  How to order?

A We are available via email, please free to send us your requests, and it will be nice of you to inform us detailed requests if you have. For example,size of goods,packing and qty of each item.

4. Q:What is your payments?

A:Payments: we can accept T/T, L/C.

5.  Q:Do you supply free sample?

A:We can supply you the free sample if the value is small, but you pay the fee for freight.

6.  Q:How can you guarantee the quality of the products we order?

A:We have test machine and can do the test for all of the products you order, and we supply you the quality certificate.
